Section 1.2 : Direction Fields

This topic is given its own section for a couple of reasons. First, understanding direction fields and what they tell us about a differential equation and its solution is important and can be introduced without any knowledge of how to solve a differential equation and so can be done here before we get into solving them. So, having some information about the solution to a differential equation without actually having the solution is a nice idea that needs some investigation.

Next, since we need a differential equation to work with, this is a good section to show you that differential equations occur naturally in many cases and how we get them. Almost every physical situation that occurs in nature can be described with an appropriate differential equation. The differential equation may be easy or difficult to arrive at depending on the situation and the assumptions that are made about the situation and we may not ever be able to solve it, however it will exist.

The process of describing a physical situation with a differential equation is called modeling. We will be looking at modeling several times throughout this class.

One of the simplest physical situations to think of is a falling object. So, let’s consider a falling object with mass $m$ and derive a differential equation that, when solved, will give us the velocity of the object at any time, $t$. We will assume that only gravity and air resistance will act upon the object as it falls. Below is a figure showing the forces that will act upon the object.

$This is a free body diagram. In the center is a dot denoting the object and labeled “m”. Rising upwards out of the dot is an arrow that is marked $F_{A}$ and falling downwards out of the dot is an arrow that is marked $F{G}$.$

Before defining all the terms in this problem we need to set some conventions. We will assume that forces acting in the downward direction are positive forces while forces that act in the upward direction are negative. Likewise, we will assume that an object moving downward (i.e. a falling object) will have a positive velocity.

Now, let’s take a look at the forces shown in the diagram above. ${F_G}$ is the force due to gravity and is given by ${F_G} = mg$ where $g$ is the acceleration due to gravity. In this class we use $g$ = 9.8 m/s² or $g$ = 32 ft/s² depending on whether we will use the metric or Imperial system. ${F_A}$ is the force due to air resistance and for this example we will assume that it is proportional to the velocity, $v$, of the mass. Therefore, the force due to air resistance is then given by ${F_A} = - \gamma v$, where $\gamma > 0$. Note that the “–” is required to get the correct sign on the force. Both $\gamma$ and $v$ are positive and the force is acting upward and hence must be negative. The “–” will give us the correct sign and hence direction for this force.

Recall from the previous section that Newton’s Second Law of motion can be written as

\[m\frac{{dv}}{{dt}} = F\left( {t,v} \right)\]

where $F\left( {t,v} \right)$ is the sum of forces that act on the object and may be a function of the time $t$ and the velocity of the object, $v$. For our situation we will have two forces acting on the object gravity, ${F_G} = mg$. acting in the downward direction and hence will be positive, and air resistance, ${F_A} = - \gamma v$, acting in the upward direction and hence will be negative. Putting all of this together into Newton’s Second Law gives the following.

\[m\frac{{dv}}{{dt}} = mg - \gamma v\]

To simplify the differential equation let’s divide out the mass, $m$.

\[\begin{equation}\frac{{dv}}{{dt}} = g - \frac{{\gamma v}}{m} \label{eq:eq1}\end{equation}\]

This then is a first order linear differential equation that, when solved, will give the velocity, $v$ (in m/s), of a falling object of mass $m$ that has both gravity and air resistance acting upon it.

In order to look at direction fields (that is after all the topic of this section....) it would be helpful to have some numbers for the various quantities in the differential equation. So, let’s assume that we have a mass of 2 kg and that $\gamma= 0.392$. Plugging this into $\eqref{eq:eq1}$ gives the following differential equation.

\[\begin{equation}\frac{{dv}}{{dt}} = 9.8 - 0.196v \label{eq:eq2} \end{equation}\]

Let's take a geometric view of this differential equation. Let's suppose that for some time, $t$, the velocity just happens to be $v = 30$ m/s. Note that we’re not saying that the velocity ever will be 30 m/s. All that we’re saying is that let’s suppose that by some chance the velocity does happen to be 30 m/s at some time $t$. So, if the velocity does happen to be 30 m/s at some time $t$ we can plug $v = 30$ into $\eqref{eq:eq2}$ to get.

\[\frac{{dv}}{{dt}} = 3.92\]

Recall from your Calculus I course that a positive derivative means that the function in question, the velocity in this case, is increasing, so if the velocity of this object is ever 30m/s for any time $t$ the velocity must be increasing at that time.

Also, recall that the value of the derivative at a particular value of $t$ gives the slope of the tangent line to the graph of the function at that time, $t$. So, if for some time $t$ the velocity happens to be 30 m/s the slope of the tangent line to the graph of the velocity is 3.92.

We could continue in this fashion and pick different values of $v$ and compute the slope of the tangent line for those values of the velocity. However, let's take a slightly more organized approach to this. Let's first identify the values of the velocity that will have zero slope or horizontal tangent lines. These are easy enough to find. All we need to do is set the derivative equal to zero and solve for $v$.

In the case of our example we will have only one value of the velocity which will have horizontal tangent lines, $v = 50$ m/s. What this means is that IF (again, there’s that word if), for some time $t$, the velocity happens to be 50 m/s then the tangent line at that point will be horizontal. What the slope of the tangent line is at times before and after this point is not known yet and has no bearing on the slope at this particular time, $t$.

So, if we have $v = 50$, we know that the tangent lines will be horizontal. We denote this on an axis system with horizontal arrows pointing in the direction of increasing $t$ at the level of $v = 50$ as shown in the following figure.

$A graph with domain $0 \le t \le 5$ and range $0 \le v(t) \le 80$. At v(t)=50 there is a horizontal line of arrows all pointing to the right.$

Now, let's get some tangent lines and hence arrows for our graph for some other values of $v$. At this point the only exact slope that is useful to us is where the slope horizontal. So instead of going after exact slopes for the rest of the graph we are only going to go after general trends in the slope. Is the slope increasing or decreasing? How fast is the slope increasing or decreasing? For this example those types of trends are very easy to get.

First, notice that the right hand side of $\eqref{eq:eq2}$ is a polynomial and hence continuous. This means that it can only change sign if it first goes through zero. So, if the derivative will change signs (no guarantees that it will) it will do so at $v$ = 50 and the only place that it may change sign is $v = 50$. This means that for $v>50$ the slope of the tangent lines to the velocity will have the same sign. Likewise, for $v<50$ the slopes will also have the same sign. The slopes in these ranges may have (and probably will) have different values, but we do know what their signs must be.

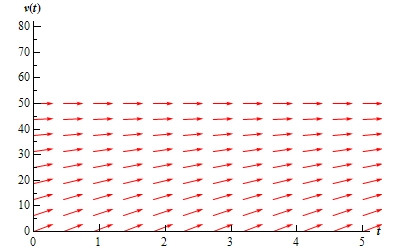

Let's start by looking at $v<50$. We saw earlier that if $v = 30$ the slope of the tangent line will be 3.92, or positive. Therefore, for all values of $v<50$ we will have positive slopes for the tangent lines. Also, by looking at $\eqref{eq:eq2}$ we can see that as $v$ approaches 50, always staying less than 50, the slopes of the tangent lines will approach zero and hence flatten out. If we move $v$ away from 50, staying less than 50, the slopes of the tangent lines will become steeper. If you want to get an idea of just how steep the tangent lines become you can always pick specific values of $v$ and compute values of the derivative. For instance, we know that at $v$ = 30 the derivative is 3.92 and so arrows at this point should have a slope of around 4. Using this information, we can now add in some arrows for the region below $v$ = 50 as shown in the graph below.

Now, let’s look at $v>50$. The first thing to do is to find out if the slopes are positive or negative. We will do this the same way that we did in the last bit, i.e. pick a value of $v$, plug this into $\eqref{eq:eq2}$ and see if the derivative is positive or negative. Note, that you should NEVER assume that the derivative will change signs where the derivative is zero. It is easy enough to check so you should always do so.

We need to check the derivative so let's use $v$ = 60. Plugging this into $\eqref{eq:eq2}$ gives the slope of the tangent line as -1.96, or negative. Therefore, for all values of $v>50$ we will have negative slopes for the tangent lines. As with $v<50$, by looking at $\eqref{eq:eq2}$ we can see that as $v$ approaches 50, always staying greater than 50, the slopes of the tangent lines will approach zero and flatten out. While moving $v$ away from 50 again, staying greater than 50, the slopes of the tangent lines will become steeper. We can now add in some arrows for the region above $v$ = 50 as shown in the graph below.

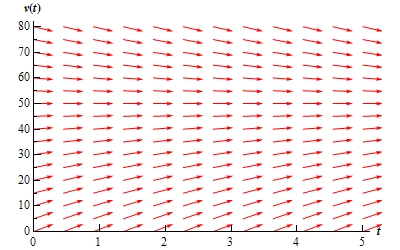

This graph above is called the direction field for the differential equation.

So, just why do we care about direction fields? There are two nice pieces of information that can be readily found from the direction field for a differential equation.

Sketch of solutions. Since the arrows in the direction fields are in fact tangents to the actual solutions to the differential equations we can use these as guides to sketch the graphs of solutions to the differential equation.
Long Term Behavior. In many cases we are less interested in the actual solutions to the differential equations as we are in how the solutions behave as $t$ increases. Direction fields, if we can get our hands on them, can be used to find information about this long term behavior of the solution.

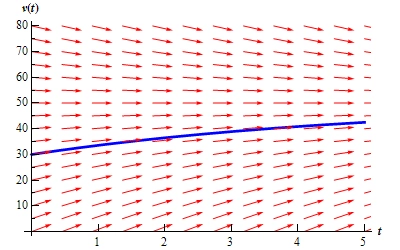

So, back to the direction field for our differential equation. Suppose that we want to know what the solution that has the value $v\left( 0 \right) = 30$ looks like. We can go to our direction field and start at 30 on the vertical axis. At this point we know that the solution is increasing and that as it increases the solution should flatten out because the velocity will be approaching the value of $v$ = 50. So we start drawing an increasing solution and when we hit an arrow we just make sure that we stay parallel to that arrow. This gives us the figure below.

$A graph with domain $0 \le t \le 5$ and range $0 \le v(t) \le 80$. At v(t)=50 there is a horizontal line of arrows all pointing to the right. Below v(t)=50 there are a series of arrows that all point to the right. Arrows that are near v(t)=50 all have a shallow and increasing slope. The farther below v(t) the arrows get the steeper (and still increasing) their slopes are. Above v(t)=50 there are a series of arrows that all point to the right. Arrows that are near v(t)=50 all have a shallow and decreasing slope. The farther below v(t) the arrows get the steeper (and still decreasing) their slopes are. At v(0) = 30 there is a solution to the differential equation. As it moves to the right it is always parallel to the arrows. As such it starts at v(0) = 30 and increases. As the solution gets closer and closer to v(t) = 50 it shallows out. The graph never crosses v(t)=50.$

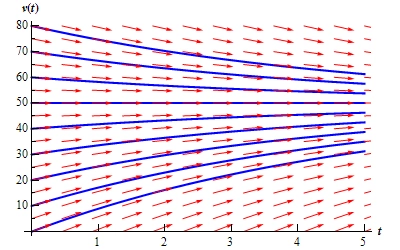

To get a better idea of how all the solutions are behaving, let's put a few more solutions in. Adding some more solutions gives the figure below. The set of solutions that we've graphed below is often called the family of solution curves or the set of integral curves. The number of solutions that is plotted when plotting the integral curves varies. You should graph enough solution curves to illustrate how solutions in all portions of the direction field are behaving.

$A graph with domain $0 \le t \le 5$ and range $0 \le v(t) \le 80$. At v(t)=50 there is a horizontal line of arrows all pointing to the right. Below v(t)=50 there are a series of arrows that all point to the right. Arrows that are near v(t)=50 all have a shallow and increasing slope. The farther below v(t) the arrows get the steeper (and still increasing) their slopes are. Above v(t)=50 there are a series of arrows that all point to the right. Arrows that are near v(t)=50 all have a shallow and decreasing slope. The farther below v(t) the arrows get the steeper (and still decreasing) their slopes are. Along the v(t) axis a number of graph representing solutions start. The graph at v(t) = 50 is a horizontal line. Solutions that start below v(t)=50 increase, always parallel to the arrows, and the closer they get to v(t)=50 the shallower they get. Solutions that start above v(t)=50 decrease, always parallel to the arrows, and the closer they get to v(t)=50 the shallower they get. None of the solutions cross v(t)=50.$

Now, from either the direction field, or the direction field with the solution curves sketched in we can see the behavior of the solution as $t$ increases. For our falling object, it looks like all of the solutions will approach $v = 50$ as $t$ increases.

We will often want to know if the behavior of the solution will depend on the value of $v$(0). In this case the behavior of the solution will not depend on the value of $v$(0), but that is probably more of the exception than the rule so don’t expect that.

Let’s take a look at a more complicated example.

Example 1 Sketch the direction field for the following differential equation. Sketch the set of integral curves for this differential equation. Determine how the solutions behave as $t \to \infty $ and if this behavior depends on the value of $y$(0) describe this dependency. \[y' = \left( {{y^2} - y - 2} \right){\left( {1 - y} \right)^2}\]

Show Solution

First, do not worry about where this differential equation came from. To be honest, we just made it up. It may, or may not describe an actual physical situation.

This differential equation looks somewhat more complicated than the falling object example from above. However, with the exception of a little more work, it is not much more complicated. The first step is to determine where the derivative is zero.

\[\begin{align*}0 & = \left( {{y^2} - y - 2} \right){\left( {1 - y} \right)^2}\\ 0 & = \left( {y - 2} \right)\left( {y + 1} \right){\left( {1 - y} \right)^2}\end{align*}\]

We can now see that we have three values of $y$ in which the derivative, and hence the slope of tangent lines, will be zero. The derivative will be zero at $y$ = -1, 1, and 2. So, let's start our direction field with drawing horizontal tangents for these values. This is shown in the figure below.

$A graph with domain $0 \le t \le 5$ and range $-2 \le y(t) \le 3$. At y(t)=-1, y(t)=1 and y(t)=2 there are horizontal lines of arrows all pointing to the right.$

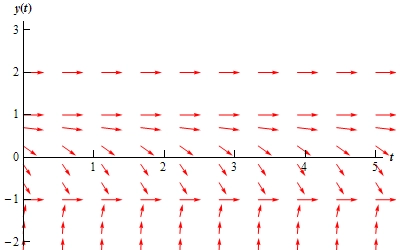

Now, we need to add arrows to the four regions that the graph is now divided into. For each of these regions I will pick a value of $y$ in that region and plug it into the right hand side of the differential equation to see if the derivative is positive or negative in that region. Again, to get an accurate direction fields you should pick a few more values over the whole range to see how the arrows are behaving over the whole range.

$y < - 1$

In this region we can use $y$ = -2 as the test point. At this point we have $y' = 36$. So, tangent lines in this region will have very steep and positive slopes. Also as $y \to - 1$ the slopes will flatten out while staying positive. The figure below shows the direction fields with arrows in this region.

$ - 1 < y < 1$

In this region we can use $y$ = 0 as the test point. At this point we have $y' = - 2$. Therefore, tangent lines in this region will have negative slopes and apparently not be very steep. So what do the arrows look like in this region? As $y \to 1$ staying less than 1 of course, the slopes should be negative and approach zero. As we move away from 1 and towards -1 the slopes will start to get steeper (and stay negative), but eventually flatten back out, again staying negative, as $y \to - 1$ since the derivative must approach zero at that point. The figure below shows the direction fields with arrows added to this region.

$1 < y < 2$

In this region we will use $y$ = 1.5 as the test point. At this point we have $y' = - 0.3125$. Tangent lines in this region will also have negative slopes and apparently not be as steep as the previous region. Arrows in this region will behave essentially the same as those in the previous region. Near $y$ = 1 and $y$ = 2 the slopes will flatten out and as we move from one to the other the slopes will get somewhat steeper before flattening back out. The figure below shows the direction fields with arrows added to this region.

$y > 2$

In this last region we will use $y$ = 3 as the test point. At this point we have $y' = 16$. So, as we saw in the first region tangent lines will start out fairly flat near $y$ = 2 and then as we move way from $y$ = 2 they will get fairly steep.

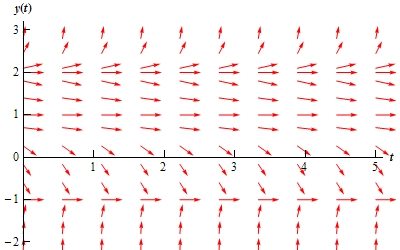

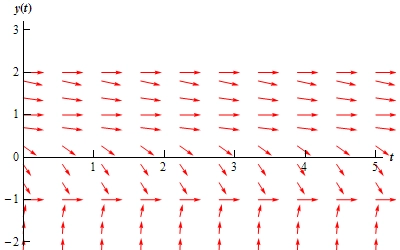

The complete direction field for this differential equation is shown below.

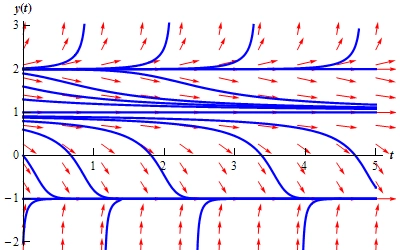

Here is the set of integral curves for this differential equation.

$A graph with domain $0 \le t \le 5$ and range $-2 \le y(t) \le 3$. At y(t)=-1, y(t)=1 and y(t)=2 there are horizontal lines of arrows all pointing to the right. Below y(t)=-1 there are a series of arrows that all point to the right. They all have a steep, increasing slope that shallows out somewhat at they get closer to y(t)=-1. None of them cross y(t)=-1. In the range $-1<y(t)<1$ are a series of arrows all pointing to the right. Starting near y(t)=1 they have a shallow, decreasing slope. As they move down from y(t)=1 they steepen in slope and finally shallow back out as they get near y(t)=-1. None of them cross y(t)=-1. In the range $1<y(t)<2$ are a series of arrows all pointing to the right. Starting near y(t)=2 they have a shallow, decreasing slope. As they move down from y(t)=2 they steepen in slope and finally shallow back out as they get near y(t)=1. None of them cross y(t)=1. In the range $y(t) > 2$ are a series of arrows all pointing to the right. Starting near y(t)=2 they have a shallow, increasing slope. As they move up from y(t)=2 they steepen in slope. Along the y(t) axis a number of graph representing solutions start. The graphs at y(t) = -1, y(t)=1 and y(t)=2 are a horizontal line. Solutions that start below y(t)=-1 increase, always parallel to the arrows, and the closer they get to y(t)=-1 the shallower they get. Solutions that start in the range $-1<y(t)<1$ start shallow and decreasing near y(t)=1, steepen out as they move down form y(t)=1 and then shallow out as they get near y(t)=-1. Solutions that start in the range $1<y(t)<2$ start shallow and decreasing near y(t)=2, steepen out as they move down form y(t)=2 and then shallow out as they get near y(t)=1. Solutions in the range $y(t)>2$ are shallow and increasing hear y(t)=2 and steepen out as they increase away from y(t)=2.$

Finally, let's take a look at long term behavior of all solutions. Unlike the first example, the long term behavior in this case will depend on the value of $y$ at t = 0. By examining either of the previous two figures we can arrive at the following behavior of solutions as $t \to \infty $.

Value of $y$(0)	Behavior as $t \to \infty $
$y\left( 0 \right) < 1$	$y \to - 1$
$1 \le y\left( 0 \right) < 2$	$y \to 1$
$y\left( 0 \right) = 2$	$y \to 2$
$y\left( 0 \right) > 2$	$y \to \infty $

Do not forget to acknowledge what the horizontal solutions are doing. This is often the most missed portion of this kind of problem.

In both of the examples that we've worked to this point the right hand side of the derivative has only contained the function and NOT the independent variable. When the right hand side of the differential equation contains both the function and the independent variable the behavior can be much more complicated and sketching the direction fields by hand can be very difficult. Computer software is very handy in these cases.

In some cases they aren’t too difficult to do by hand however. Let’s take a look at the following example.

Example 2 Sketch the direction field for the following differential equation. Sketch the set of integral curves for this differential equation. \[y' = y - x\]

Show Solution

To sketch direction fields for this kind of differential equation we first identify places where the derivative will be constant. To do this we set the derivative in the differential equation equal to a constant, say $c$. This gives us a family of equations, called isoclines, that we can plot and on each of these curves the derivative will be a constant value of $c$.

Notice that in the previous examples we looked at the isocline for $c = 0$ to get the direction field started. For our case the family of isoclines is.

\[c = y - x\]

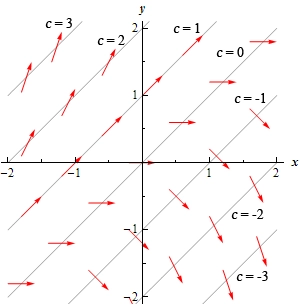

The graph of these curves for several values of $c$ is shown below.

Now, on each of these lines, or isoclines, the derivative will be constant and will have a value of $c$. On the $c = 0$ isocline the derivative will always have a value of zero and hence the tangents will all be horizontal. On the $c = 1$ isocline the tangents will always have a slope of 1, on the $c = -2$ isocline the tangents will always have a slope of -2, etc. Below are a few tangents put in for each of these isoclines.

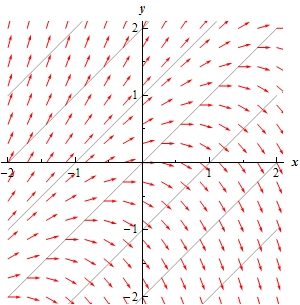

To add more arrows for those areas between the isoclines start at say, $c = 0$ and move up to $c = 1$ and as we do that we increase the slope of the arrows (tangents) from 0 to 1. This is shown in the figure below.

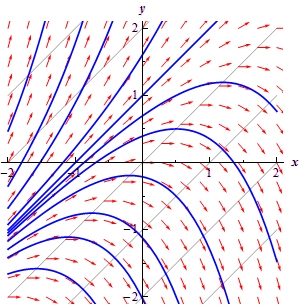

We can then add in integral curves as we did in the previous examples. This is shown in the figure below.

$A graph with domain $-2 \le x \le 2$ and range $-2 \le y) \le 3$. There are a series of parallel lines all forming an angle of 45 degrees with the x-axis shown. They are marked with various value of c ranging from c=-3 on the line in the bottom right corner all the way up to c=3 on the line in the upper left corner. Along the c=0 line are a series of horizontal arrows all pointing right. Along the c=-1, c=-2 and c=-3 lines are decreasing arrows pointing right and the slope is steeper the “larger” c gets. Along the c=1, c=2 and c=3 lines are increasing arrows pointing right and the slope is steeper the “larger” c gets. Between each line are more arrows. The slope of each of them ranges between the slopes from each of the lines. Along the left edge of the graph a series of solution graphs start. There is one nearly straight line going through (-1,0) and (0,1). Solutions that start above this line veer slightly upwards as x increases. Solutions that start below this line decrease slightly for a while and then sharply turn downwards after a while as x increases.$
