Section 1.10 : Common Graphs

Without using a graphing calculator sketch the graph of \(h\left( x \right) = \cos \left( {x + \frac{\pi }{2}} \right)\).

Hint : Recall that the graph of \(g\left( {x + c} \right)\) is simply the graph of \(g\left( x \right)\) shifted right by \(c\) units if \(c < 0\) or shifted left by \(c\) units if \(c > 0\).
Show Solution

Recall the basic Algebraic transformations. If we know the graph of \(g\left( x \right)\) then the graph of \(g\left( {x + c} \right)\) is simply the graph of \(g\left( x \right)\) shifted right by \(c\) units if \(c < 0\) or shifted left by \(c\) units if \(c > 0\).

So, in our case if \(g\left( x \right) = \cos \left( x \right)\) we can see that,

\[h\left( x \right) = \cos \left( {x + \frac{\pi }{2}} \right) = g\left( {x + \frac{\pi }{2}} \right)\]

and so the graph we’re being asked to sketch is the graph of the cosine function shifted left by \(\frac{\pi }{2}\) units.

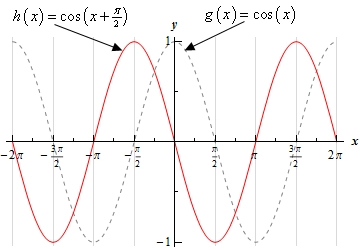

Here is the graph of \(h\left( x \right) = \cos \left( {x + \frac{\pi }{2}} \right)\) and note that to help see the transformation we have also sketched in the graph of \(g\left( x \right) = \cos \left( x \right)\).

CommonGraphs_Ex5
